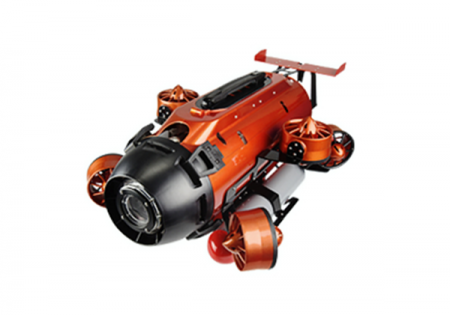

Seadragon

Underwater ROV
BannerCXX180dgf_wall
BannerCXX180dgf_wall
1

Features:

  • Live Ultra-low Latency Video (with Standard Electronics Package)
  • Live 1080p HD Video (with Advanced Electronics Package, 200 ms latency)
  • Highly Maneuverable Vectored Thruster Configuration
  • Stable and Optimized for Inspection- and Research-class Missions
  • Easy to Use, Cross-platform User Interface
  • Up to 200m Depth Rating
  • 6xTT-100 Thrusters and high performance ESC for the best Thrust-to-Weight Ratio in its Class
  • Battery powered With Quick-Swappable Batteries for Long Missions

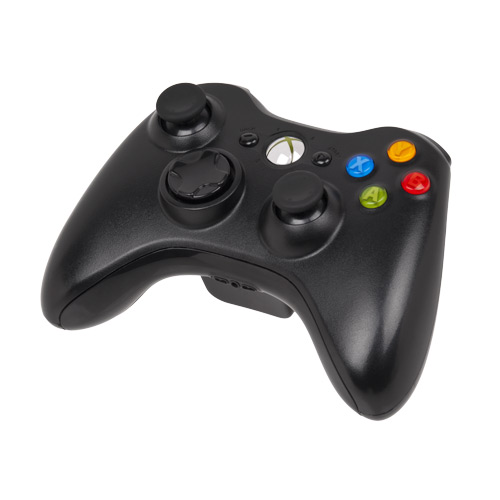

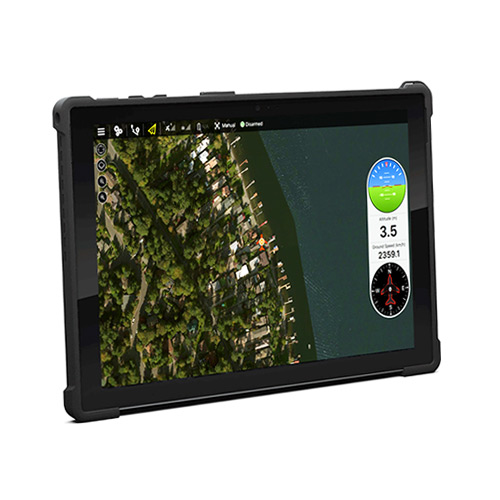

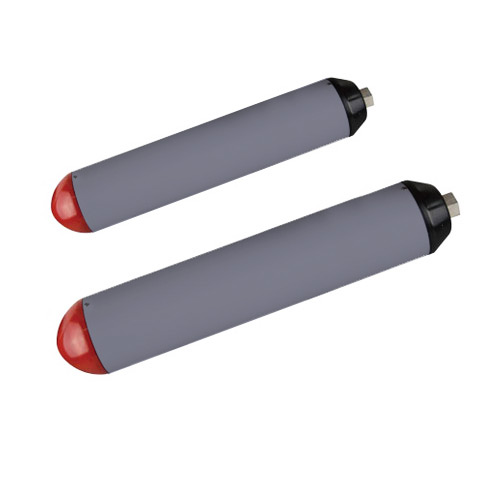

Quick-Swappable Battery Pilot System Xbox Controller

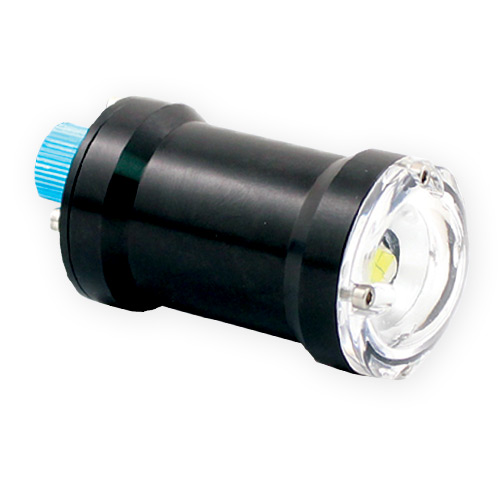

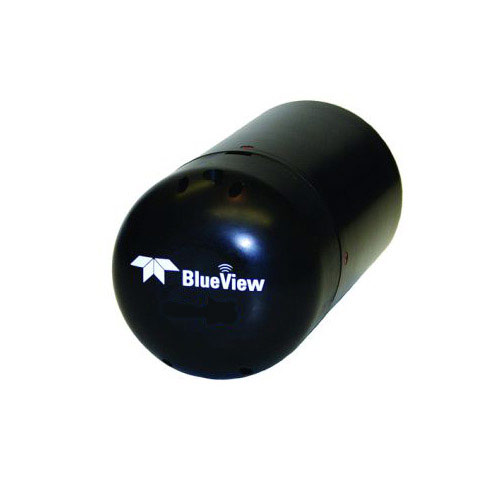

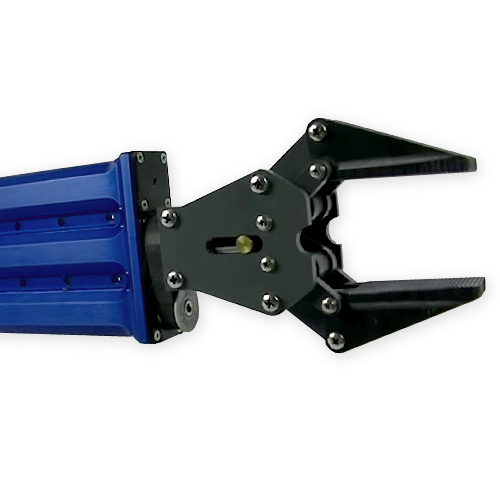

Flashlight Manipulator Arm Sonar Sensor

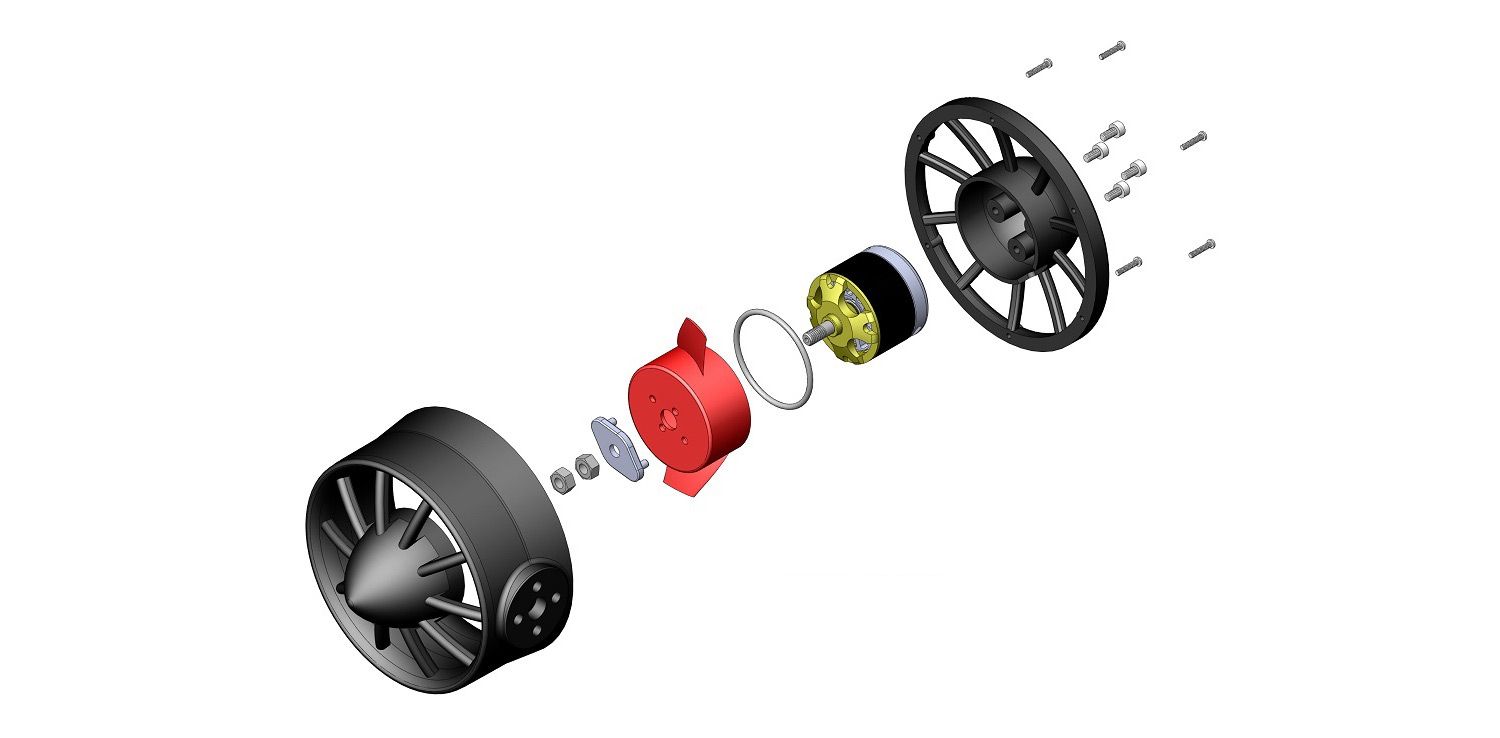

TT100 THRUSTER

Motor Stator Size Motor KV ESC current
28*20mm (1.1*0.8in) 450rpm/V 30A
Propeller Diameter Propeller Pitch(angle) Propeller Pitch(travel)
76.2mm (3in) 27.5 deg(at 75% radius) 94 mm/rev

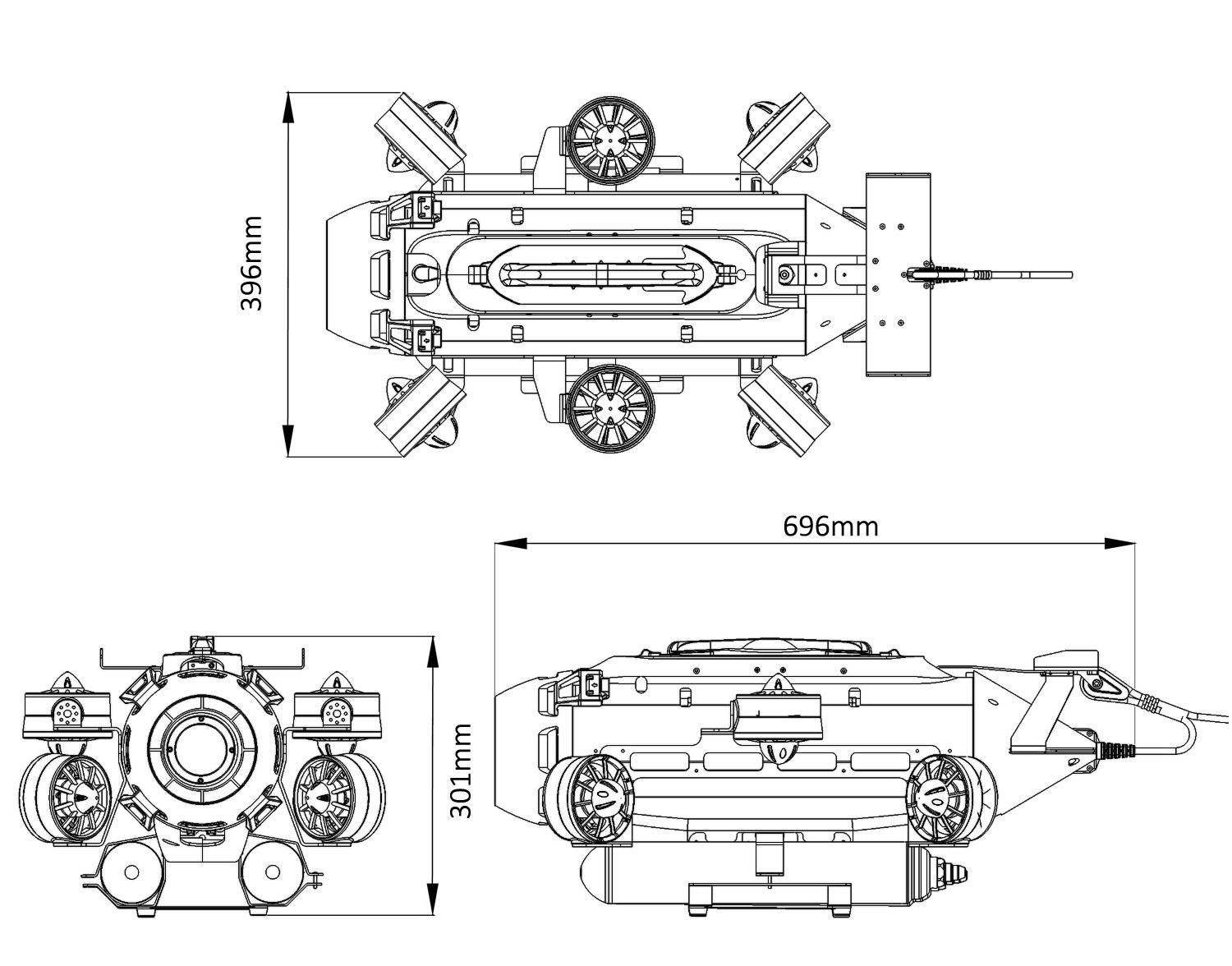

Specifications

Frame Type Length Width Height
ROV 696mm (27.4in) 396mm (15.6in) 301mm (11.9in)
