Intorduction

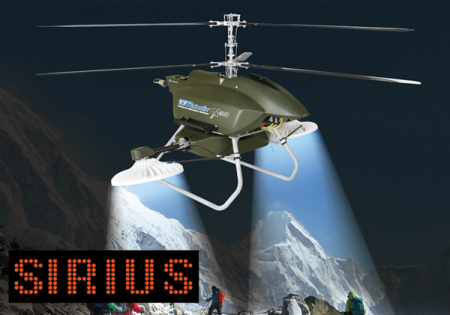

Being the unmanned helicopter professional’s choice for high output aerial lighting, the aerial LED systems are designed to be mounted to CX-180 Sirius. They allow dynamic and unique lighting angles and shadow movements that have been impossible otherwise without the use of CX-180 Sirius. Super brightness LED integrates into high payload CX-180 for versatile, powerful lighting for inspection, search and rescue.

Features:

  • Search and Rescue Unmanned Helicopter
  • Over 70,000 Lm Super Brightness LED Searchlight.
  • High efficiency coaxial pitch control structure design.
  • Exclusive dual motor power safety system design has been officially patented.
  • Specially designed high efficiency 6 blade rotor system.
  • Foldable Main rotor and No tail rotor compact design.

Searchlight Specifications

Diameter Height Input Voltage Power Consumption Typical Lm Output(WD)
369mm (14.5in) 91mm (3.6in) DC 24V 300W *2 36,000Lm *2
Weight Beam Spread Angle Color Rendering Index Operation Temperature Life Time
3.2kg *2 30° >80 -30°C ~ +50°C 60,000hr


Helicopter Specifications

Length Width Height Rotor Diameter
1166mm (45.9in) 1406mm (55.4in) 906mm(35.7in) 1820mm (72in)
Motor Power Battery Take off Weight Max Flight Time
400KV BRUSHLESS MOTOR 6S-LiPo 22000mAh(25C)*4 32kg(with LED Structure) 25min
